Beam 20R 420W

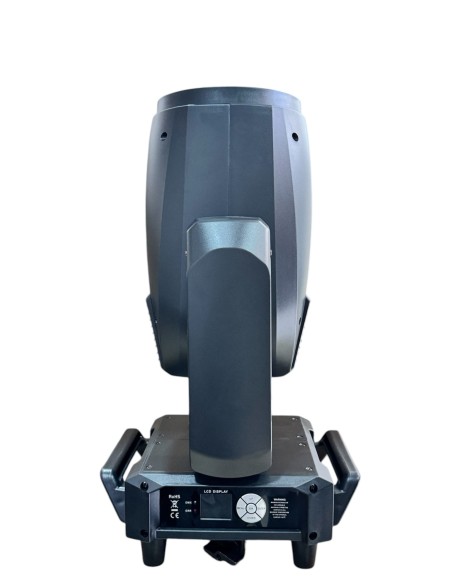

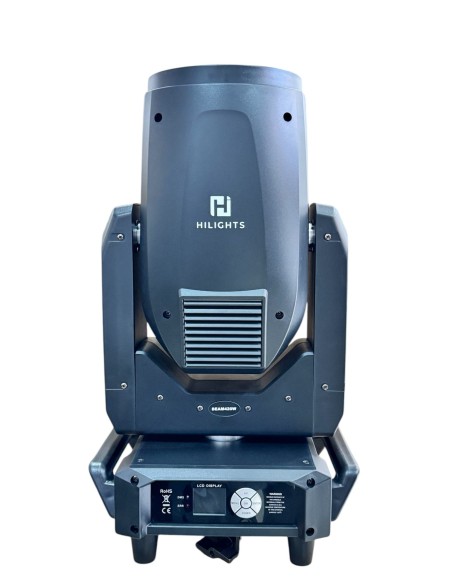

420W Beam Moving Head Light – DMX512 with Gobo & Prism Effects

The 420W Beam Moving Head Light is a state-of-the-art lighting fixture designed for professional events, concerts, and stage performances. Equipped with a powerful 420W bulb, it provides exceptional brightness and vibrant lighting effects for a variety of applications.

Key Features:

• Rated Voltage: AC100-240V, 50/60Hz
• Bulb Specification: 420W bulb with a lifespan of 20,000 hours
• Beam Angle: 0°-5° with a large aperture for precise lighting
• Color Wheel: 14 colors + white, with linear and rainbow effects
• Gobo Wheel: 13 gobos + 1 open, with variable speed rotation and jitter effects
• Prism Effects: 8-facet prism with dual-direction rotation and variable speeds
• Dimming: 0-100% electronic dimming with gamma curve adjustment
• Strobe: Adjustable 0.3-25 times/second with random and macro strobe options
• Pan/Tilt Rotation:
  • Pan: 540° (16-bit precision)
  • Tilt: 270° (16-bit precision)
  • High-speed, silent 3-phase motor for smooth operation
• Cooling System: Intelligent fan monitoring with temperature-based adjustments
• Control Modes: DMX512 (16/19 channels), RDM protocol supported
• Display: 1.77” TFT LCD screen with intuitive menu navigation

Dimensions & Weight:

• Product Size: 523x337x511mm
• Packing Size: 635x440x725mm
• Net Weight: 13.5kg

Applications: The 420W Beam Moving Head Light is ideal for:

1. Concerts and live events: Create dynamic and vibrant effects with advanced gobo and prism functionality.
2. Stage lighting: Illuminate performances with precision and flexibility.
3. Theater and clubs: Enhance the ambiance with high-performance beam lighting.

Why Choose This Light? The 420W Beam Moving Head Light offers unmatched versatility and reliability. With its advanced features, including DMX512 control, precise beam focus, and robust cooling system, it ensures optimal performance for professional lighting setups.
